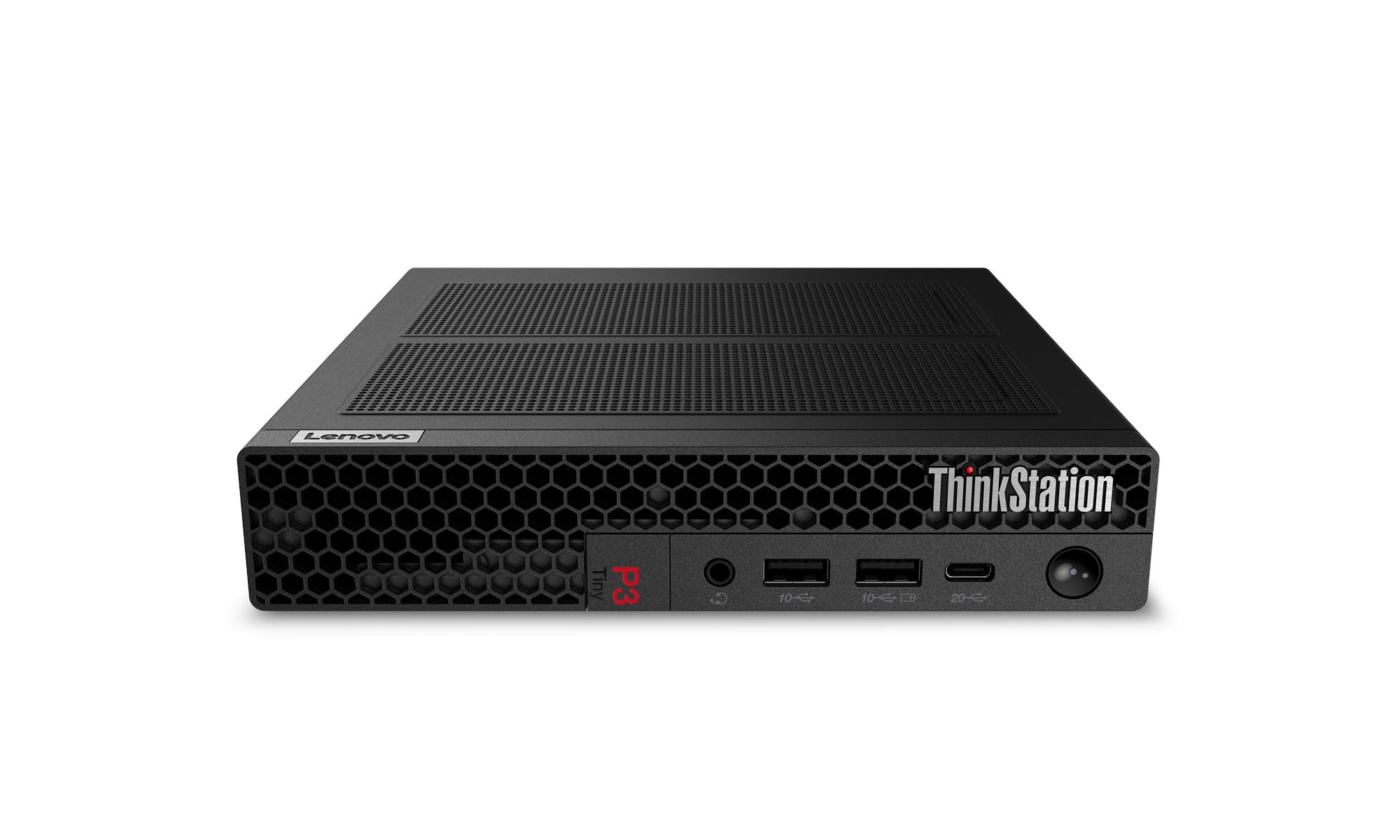

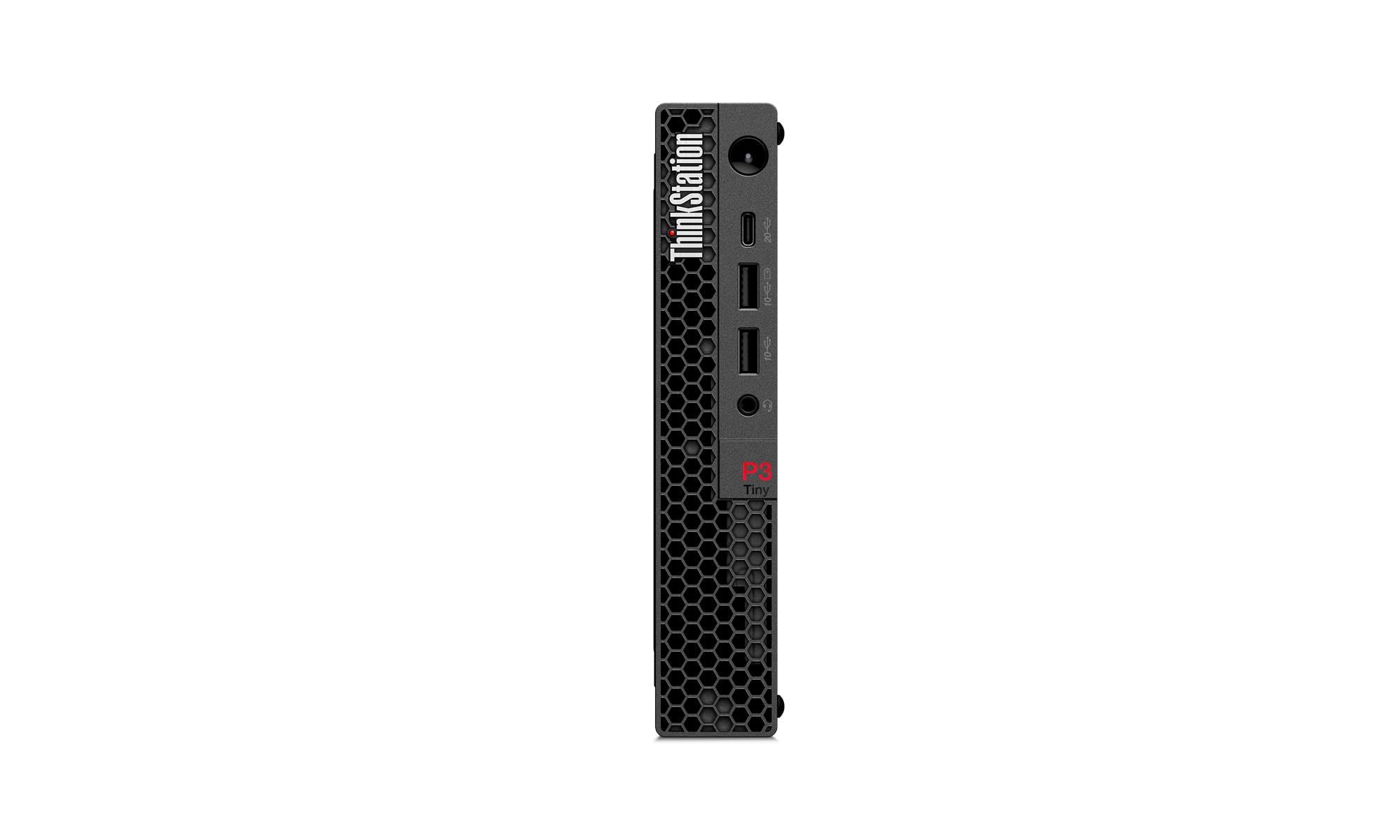

Lenovo ThinkStation P3 Tiny Gen 2 — 30K5005LUS
- Manufacturer
- Lenovo
- Manufacturer part number
- 30K5005LUS
- BPC product number
- BP-LENOVO-e2f4e4711054229094c5adb5
Tech overview
Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache · 16 GB RAM · 512 GB SSD
- Processor
- Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache
- Memory
- 16 GB
- Internal Storage
- 512 GB
- Storage type
- SSD
- Operating system
- Windows 11 Pro
- Memory configuration
- 1x 16GB SODIMM DDR5-5600 Non-ECC
Overview
Built for the work ahead.
Product details
- Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache
- 16 GB RAM
- 512 GB SSD
- Windows 11 Pro
Configuration: Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache | 16 GB RAM | 512 GB SSD | Windows 11 Pro
Technical details
Product specifications
Specifications describe the listed configuration. We verify the exact manufacturer part number in your written quote.
Manufacturer
Lenovo
Manufacturer part number
30K5005LUS
BPC product number
BP-LENOVO-e2f4e4711054229094c5adb5
Processor
Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache
Memory
16 GB
Memory configuration
1x 16GB SODIMM DDR5-5600 Non-ECC
Internal Storage
512 GB
Storage type
SSD
Operating system
Windows 11 Pro
AI PC Category
AI-Ready Workstations
Processor Sockets
1x FCLGA1851
Integrated Graphics
Integrated Intel Graphics
Discrete Graphics
None
Chipset
Intel Q870 Chipset
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 128GB (2x 64GB DDR5 CSODIMM)
PCIe NVMe Controller
Integrated NVMe controller
PCIe NVMe Drive
1x 512GB SSD M.2 2280 PCIe 5.0x4 Performance NVMe Opal
Audio Chip
High Definition (HD) Audio, Realtek ALC233VB codec
Power Supply
230W 90% Adapter
Keyboard
USB Traditional Keyboard, Black, English
Mouse
USB Calliope Mouse, Black
Case Color
Black
Dust Filter
None
Toolless Chassis Screw
None
Mounting
None
Stand
Vertical Stand
Dimensions (WxDxH)
179 x 182.9 x 37mm with rubber feet (7.0 x 7.2 x 1.5 inches with rubber feet)
Weight
1.4 kg (3 lbs, maximum configuration)
Onboard Ethernet
Intel I219-LM, 1x GbE RJ-45
Optional Ethernet
None
WLAN + Bluetooth
Intel Wi-Fi 7 BE200, 802.11be 2x2 + BT5.4, vPro
Front Ports
1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2); 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Rear Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 3x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured)
2x HDMI 2.1, up to 4K/60Hz
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks
Kensington Security Slot, 3 x 7 mm
Cable Lock
No Cable
Chassis Intrusion Switch
Chassis Intrusion Switch
System Management
Intel vPro Enterprise with Intel AMT 16
Base Warranty
3-year, Onsite
Included Upgrade
None
ISV Certifications
Please visit ISV certifications for Lenovo Workstations
Mil-Spec Test
MIL-STD-810H military test passed
Bundled Software
None
Machine Type
30K5
TopSeller
TopSeller
EAN / UPC / JAN
199274129040
End of Support
2033-06-12
Announce Date
2025-12-23
Operating system details
Windows 11 Pro, English
Condition
New
Exact configuration
Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache | 16 GB RAM | 512 GB SSD | Windows 11 Pro
