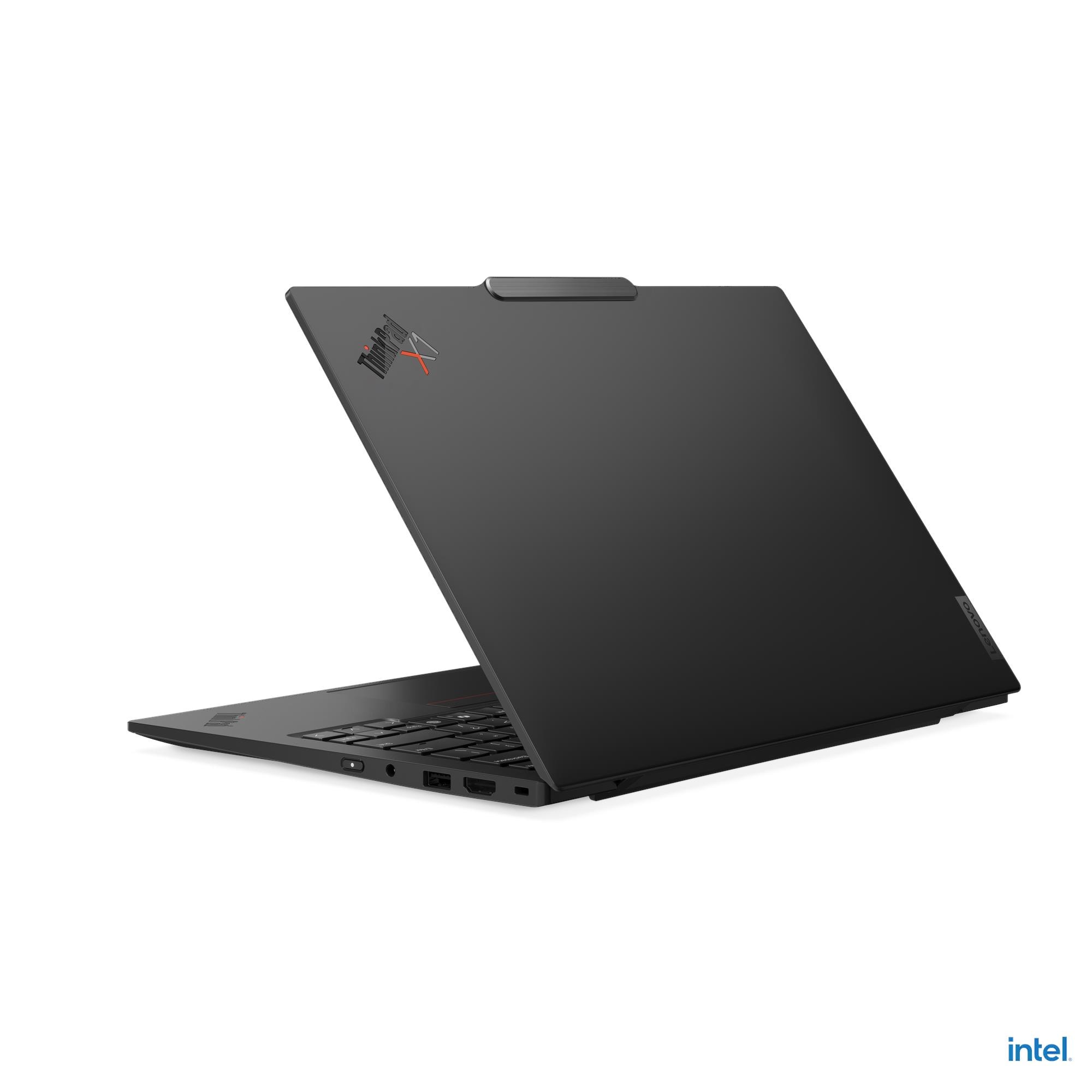

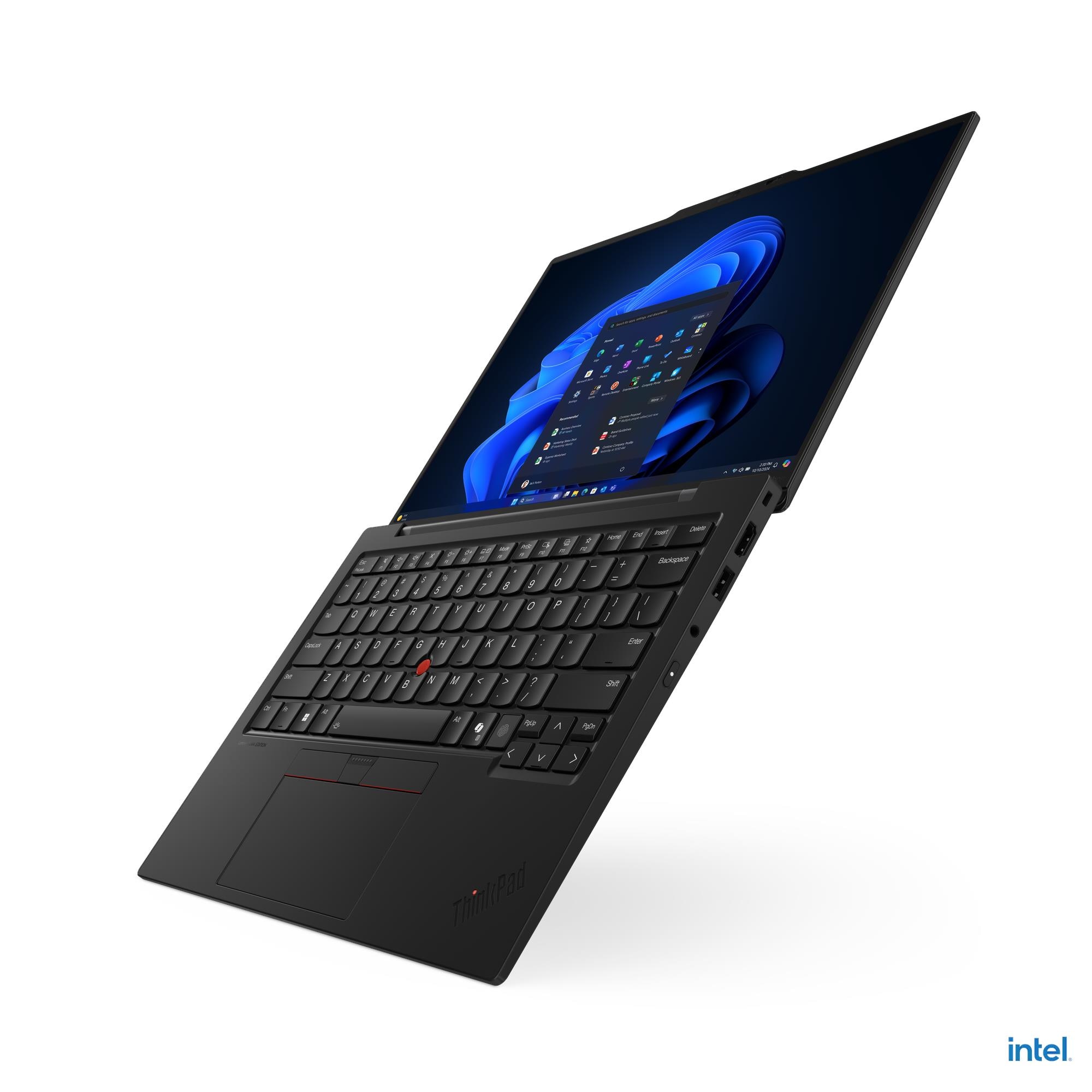

Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition — 21NS0166US
- Manufacturer
- Lenovo
- Manufacturer part number
- 21NS0166US
- BPC product number
- BP-LENOVO-2c73b1b84b67be81deabbbcb
Tech overview
Intel Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache · 32 GB RAM · 512 GB SSD
- Processor
- Intel Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
- Memory
- 32 GB
- Internal Storage
- 512 GB
- Storage type
- SSD
- Operating system
- Windows 11 Pro
- Display
- 14" 2.8K (2880x1800) OLED 500nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 120Hz VRR, DisplayHDR True Black 500, Dolby Vision
Overview
Built for the work ahead.
Product details
- Intel Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
- 32 GB RAM
- 512 GB SSD
- Windows 11 Pro
Configuration: Intel Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache | 32 GB RAM | 512 GB SSD | Windows 11 Pro
Technical details
Product specifications
Specifications describe the listed configuration. We verify the exact manufacturer part number in your written quote.
Manufacturer
Lenovo
Manufacturer part number
21NS0166US
BPC product number
BP-LENOVO-2c73b1b84b67be81deabbbcb
Processor
Intel Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
Memory
32 GB
Memory configuration
32GB Soldered LPDDR5X-8533, MoP Memory
Internal Storage
512 GB
Storage type
SSD
Operating system
Windows 11 Pro
AI PC Category
Copilot+ PC
NPU
Integrated Intel AI Boost, up to 47 TOPS
Graphics
Integrated Intel Arc Graphics 140V
Chipset
Intel SoC Platform
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Max Memory
32GB soldered memory, not upgradable
Storage
512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Storage Slot
Models with V or H series processor: one M.2 2280 PCIe 5.0 x4 slot
Max Storage Support
One drive, up to 2TB M.2 2280 SSD
Card Reader
No Card Reader
Audio Chip
Lunar Lake: SoundWire, Realtek ALC713 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos
Microphone
2x, 360°
Camera
FHD 1080p + IR Discrete with Privacy Shutter
Battery
57Wh
Power Adapter
65W USB-C Slim GaN (2-pin)
Display
14" 2.8K (2880x1800) OLED 500nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 120Hz VRR, DisplayHDR True Black 500, Dolby Vision
Touchscreen
None
Screen-to-Body Ratio
89.2%
Pen
Pen Not Supported
Keyboard
Backlit, English
Touchpad
Trackpad
Dimensions (WxDxH)
312.80 x 214.75 x 8.08/14.37 (front/rear), 16.95 (maximum) mm; 12.31 x 8.45 x 0.32/0.56 (front/rear), 0.67 (maximum) inches
Weight
Starting at 986 g (2.17 lbs)
Case Color
Black, Paint
Case Material
Carbon Fiber (Top), Magnesium (Bottom)
Bundled Software
Intel Connectivity Performance Suite + Lenovo AI Now
WLAN + Bluetooth
Intel Wi-Fi 7 BE201, 802.11be 2x2 + BT5.4, vPro
WWAN
WWAN Not Supported
SIM Card
No physical SIM card included
Ethernet
No Onboard Ethernet
NFC
No NFC
Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On; 2x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 15-65W and DisplayPort 2.1; 1x HDMI 2.1, up to 4K/60Hz; 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)
None
Docking
Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 13 Aura Edition
ThinkShield
ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more details, visit here
Security Chip
Discrete TPM 2.0 Enabled
Physical Locks
Kensington Nano Security Slot, 2.5 x 6 mm
Smart Card Reader
No Smart Card Reader
Fingerprint Reader
Touch Style, Match-on-Chip, in Keyboard Key
Other Security
Camera privacy shutter; IR camera for Windows Hello (facial recognition)
System Management
Non-vPro
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
None
Bundled Accessories
None
Green Certifications
ENERGY STAR 9.0; EPEAT 1.0 Gold Registered; ErP Lot 6/26; RoHS compliant; TCO Certified, generation 10
Mil-Spec Test
MIL-STD-810H military test passed
Other Certifications
Intel Evo Platform; SGS High Performance Al PC Certification; Eyesafe Certified 2.0
Machine Type
21NS
TopSeller
TopSeller
EAN / UPC / JAN
199275756610
End of Support
2031-06-05
Announce Date
2026-03-06
Operating system details
Windows 11 Pro, English (US) / English (UK)
Condition
New
Exact configuration
Intel Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache | 32 GB RAM | 512 GB SSD | Windows 11 Pro
