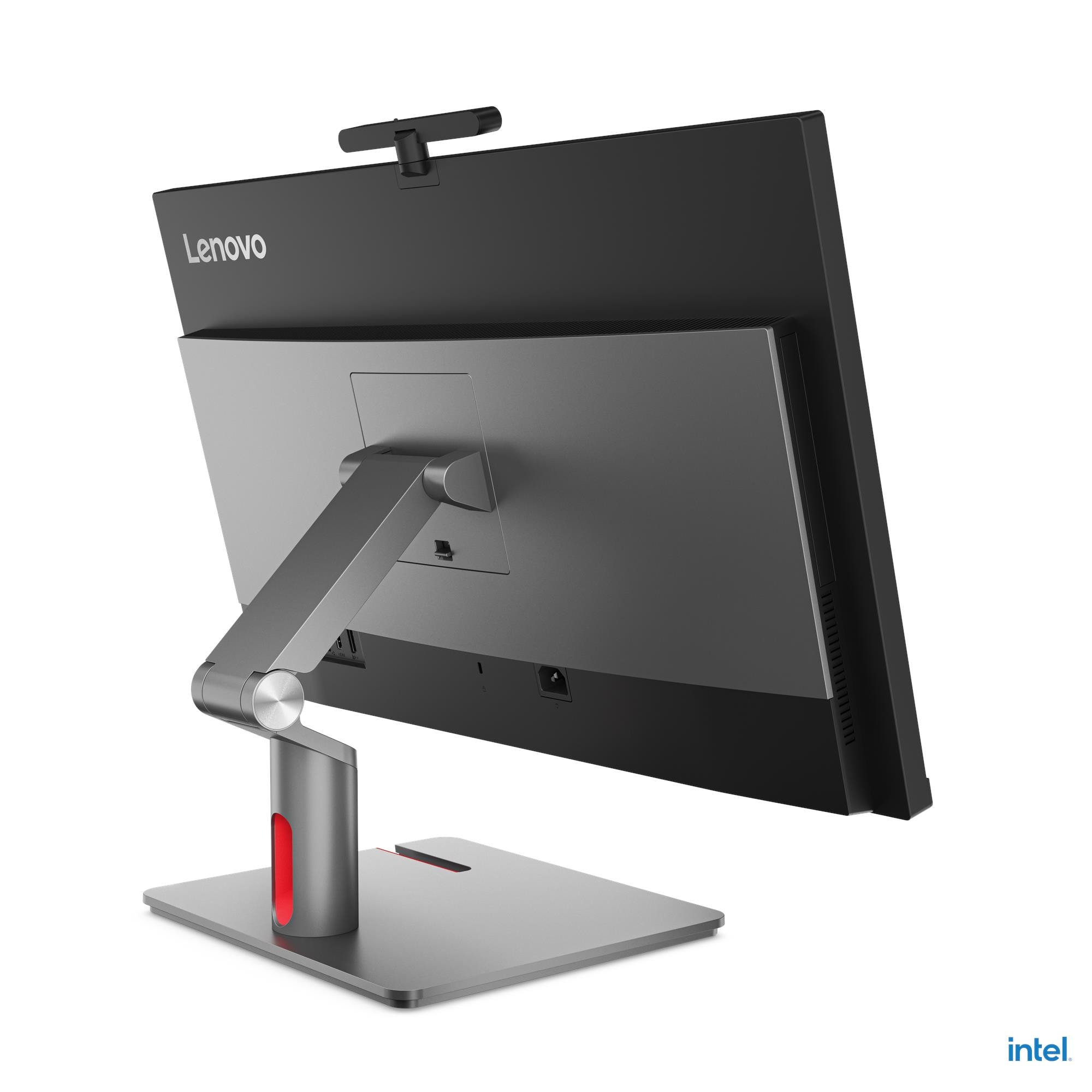

Lenovo ThinkCentre M90a Pro Gen 6 — 13AQ000XUS
- Manufacturer
- Lenovo
- Manufacturer part number
- 13AQ000XUS
- BPC product number
- BP-LENOVO-331fe01de8c8cf3d91e32b39
Tech overview
Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache · 32 GB RAM · 1 TB SSD
- Processor
- Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
- Memory
- 32 GB
- Internal Storage
- 1 TB
- Storage type
- SSD
- Operating system
- Windows 11 Pro
- Display
- 27" QHD (2560x1440) IPS Anti-glare 400nits, 120Hz, 99% sRGB, hardware low blue light, flicker free, eyesafe
Overview
Built for the work ahead.
Product details
- Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
- 32 GB RAM
- 1 TB SSD
- Windows 11 Pro
Configuration: Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache | 32 GB RAM | 1 TB SSD | Windows 11 Pro
Technical details
Product specifications
Specifications describe the listed configuration. We verify the exact manufacturer part number in your written quote.
Manufacturer
Lenovo
Manufacturer part number
13AQ000XUS
BPC product number
BP-LENOVO-331fe01de8c8cf3d91e32b39
Processor
Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
Memory
32 GB
Memory configuration
1x 32GB SODIMM DDR5-5600
Internal Storage
1 TB
Storage type
SSD
Operating system
Windows 11 Pro
AI PC Category
AI PC
NPU
Integrated Intel AI Boost, up to 13 TOPS
Graphics
NVIDIA GeForce RTX 4050 6GB GDDR6
Chipset
Intel Q870 Chipset
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5600
Storage
1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage Support
Up to three drives, 3x M.2 SSD • M.2 SSD up to 2TB each
RAID Preset
None
Card Reader
No Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC233NL-VB2-CG codec
Speakers
5Wx2
Camera
5.0MP + IR Hybrid with Human Presence Detection
Microphone
2x, Array
Power Supply
230W 92%
Display
27" QHD (2560x1440) IPS Anti-glare 400nits, 120Hz, 99% sRGB, hardware low blue light, flicker free, eyesafe
Touchscreen
None
Keyboard
EOS Wireless Keyboard, Black, English
Mouse
Wireless EOS Mouse, black
Optional Bay
None
Expansion Slots
Four M.2 slots (one for WLAN, three for SSD / discrete NPU)
Case Color
Black
Stand
UltraFlex V Stand
Mounting
VESA mount
Pen
Pen Not Supported
Form Factor
AIO (27 inches)
Dimensions (WxDxH)
Lowest in flat mode: 613.6 x 363.86 x 236.06 mm (24.16 x 14.33 x 9.29 inches) Highest in vertical mode: 613.6 x 264.99 x 472.52 mm (24.16 x 10.43 x 18.6 inches)
Weight
11.27 kg (24.85 lbs, maximum configuration)
WLAN + Bluetooth
Intel Wi-Fi 7 BE200, 802.11be 2x2 + BT5.4, vPro
WWAN
WWAN Not Supported
Ethernet
Integrated 100/1000M
Rear Ports
2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI (HDMI in 1.4 / HDMI out 2.1 TMDS combo port); 1x DisplayPort 1.4a (HBR2); 1x Ethernet (RJ-45)
Optional Rear Ports (configured)
None
Right Ports
1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 3.0 up to 65W output, DisplayPort 2.1, Always On; 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging; 1x headphone / microphone combo jack (3.5mm)
Optional Right Ports (configured)
-
Optional Ports (configured)
None
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington Security Slot, 3 x 7 mm
Chassis Intrusion Switch
None
Additional Security
Smart Human Presence Detect
Other Security
Smart Human Presence Detection (Camera with Radar Sensor)
System Management
Intel vPro Enterprise
Base Warranty
3-year, Onsite
Included Upgrade
None
Green Certifications
ErP Lot 3; GREENGUARD; RoHS compliant
Other Certifications
Anti-dust; IP55-compliant (front face); Eyesafe Certified 2.0; SGS Performance Tested certification: Super Quiet@Hi-Performance Grade 1; TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light (Hardware Solution)
Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
Bundled Software
None
Bundled Accessories
None
Machine Type
13AQ
TopSeller
TopSeller
EAN / UPC / JAN
199273691333
End of Support
2031-11-01
Announce Date
2025-12-02
Operating system details
Windows 11 Pro, English
Condition
New
Exact configuration
Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache | 32 GB RAM | 1 TB SSD | Windows 11 Pro
